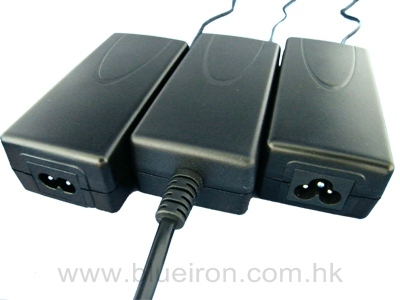

| 45W Class II Series Power Supply | |
| Input : | 100-240VAC, 50-60Hz |
| Output : | 5.0-48VDC |
| Output Power (max.) : |
42W |
| Safety Approval : | UL/cUL/FCC/CE/CB/GS/SAA/C-Tick/PSE |
| Efficiency Level | CEC Level IV/V;Erp Stage I / II ; MEPS |
| Product Name | 42W Series Power Supply |
| Model Number | BI42-XXXYYY-WZ |
| Input Voltage(VAC) | 100-240 |
| Input AC Plug | Desk-top 2pin inlet / Desk-top 3pin inlet / Desk-top with AC power cord |
| Frequency Range(Hz) | 50/60 |
| Output Power(W) | 42W (max) |
| Output Voltage Range(VDC) | 5.0-48.0 |
| Output Current(A) | 0.05-5.0 |
| Over Current Protection | Yes |
| Over-load Protection | Yes |
| Short Circuit Protection | Yes |
| Ripple/Noise(mV) | 10 times of rated output voltage (max) |
| Operating Temperature (℃) | 0 to 40 |
| Storage Temperature(℃) | -20 to +60 |
| Environmental Protection Standards | RoHS, REACH, WEEE,HR4040 |
| M.T.B.F(hrs) | 60,000 |
| EMC Standards | FCC PART 15 CLASS B，EN55022/EN55013 |
| OEM Service | Yes |
